Katy Paty Roo Orange

From £89.00

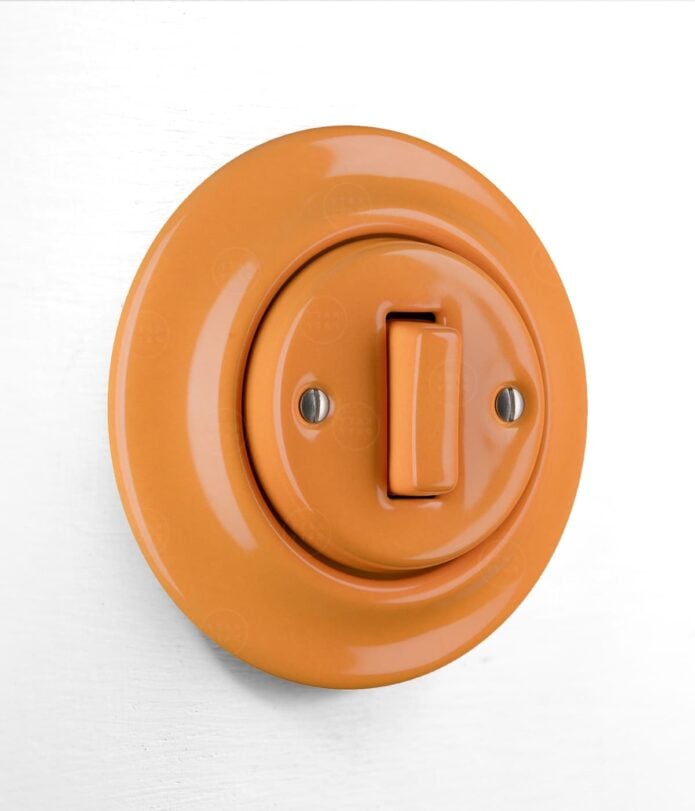

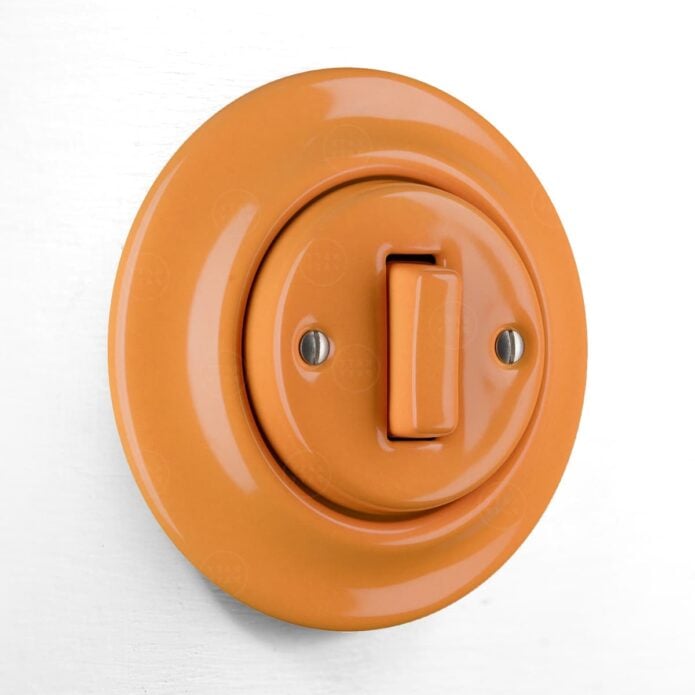

“Carota” is the newest addition to the colourful Roo range of switches and sockets by Katy Paty – a bright and joyful orange.

These classic round porcelain switches come from a small team of makers in Bohemia. Katy Paty products are solid, virtually indestructible and have a charming retro feel to them.

NB: These switches are meant to be fitted into European back boxes, not standard British rectangular ones. It is theoretically possible to fit them in a square box and fill in the corners, but it is not recommende

Scroll down for essential product details, dimensions, fitting info and more.

Katy Paty switches can be adapted to a range of sockets and connections (like AV, SAT and similar). Please contact us with any specific requirements.
Clear
SKU: 100-KPROOOPI-SW-OR-00/01/02 Categories: , , , , , , , Tag: Brand:
000

What you need to know

What’s in the box?

You will receive a modular switch set, consisting of a switch insert with integrated rocker (or 2 of them if you have chosen a 2-gang switch), a round 1-gang frame and a front plate with fixing screws.

  • Katy Paty 1-gang switch wiring
  • Katy Paty Roo Orange from Swtch

(Click image to enlarge. Pictures for illustration only. Number of gangs and/or finishes might vary)

What does an electrician call this?

This is a 1-gang 2-way 10A single pole switch, or 2-gang 2-way 10A single pole switch, or a 1-gang intermediate 10A single pole switch

Where is this used in the home?

A 1-gang 2-way switch is commonly used for controlling a single light source from one or two places. A 1-gang intermediate is used as the middle switch of three, controlling a single light source (for example in a hallway). A 2-gang switch is used for controlling two light sources from one or two places.



Installation

Katy Paty switches require a bit more patience to wire up, simply because they are modelled on original designs and don’t have the modern conveniences of push-contacts and encapsulated backplates.

Just follow the step-by-step pictures below or go to ourย Katy Paty switch installation page.ย Don’t forget: you need a European round box for this product!

Wiring

Katy Paty 1-gang switch wiring

Step-by-step

  • Katy Paty Roo Orange from Swtch
  • Katy Paty Roo Orange from Swtch
  • Katy Paty Roo Orange from Swtch
  • Katy Paty Roo Orange from Swtch
  • Katy Paty Roo Orange from Swtch
  • Katy Paty Roo Orange from Swtch

(Click gallery to enlarge. Number of gangs and/or finishes might vary)

Please refer to ourย Installation section for more installation advice, manuals and helpful videos.



Dimensions

Katy Paty Roo Orange from Swtch

Does this cover a standard british back box?
No, a 68mm round back box is required. Check the available options below.

How deep does the back box need to be?
This needs a slightly deeper box, at least 35mm.

Recommended products:
Kaiser back box for hollow walls, 35m Kaiser back box, hollow wall, single, 35mm
Kaiser back box for solid walls, 46m Kaiser back box for solid walls (single, 46mm)
