Roo Lignum Oak
From £75.00

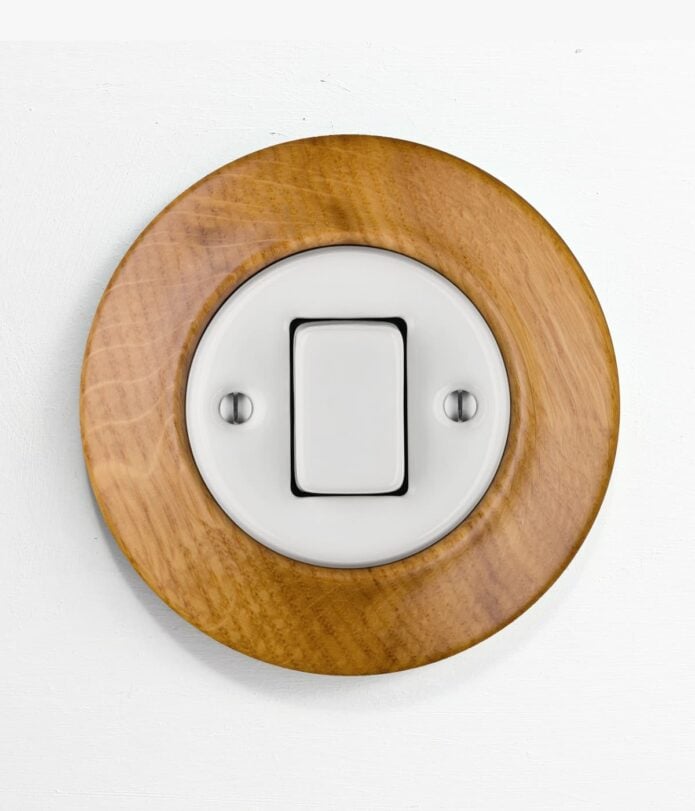

Katy Paty, a small team of switch makers in Bohemia, are best known for their range of porcelain designs in amazing colours. The Roo Lignum wooden light switch and socket range, however, features a real wood surround with a white porcelain centre plate.
This is the Oak finish with its characteristic medium light colour and strong grain.
IMPORTANT
Because of its round backplate shape, this switch doesn't fit the regular British square or rectangular wall boxes. The corners of the back box (or the hole the switch is going into) WILL SHOW.
It is perfectly possible to fit a European-style round back box, which the backplate will cover. We sell these boxes here. But this will require electrical work and decorating/plastering to make good the new wall box.
Please be aware that we don't accept returns of this product after 14 days if you find that the necessary installation/decorating work is too extensive. We kindly ask that you and your electrician make sure that they are aware of the back box incompatibility before ordering this product.
What you need to know
What’s in the box?
You will receive a modular switch set, consisting of a switch insert with integrated rocker (or 2 of them if you have chosen a 2-gang switch), a round 1-gang frame and a front plate with fixing screws.
(Click image to enlarge. Pictures for illustration only. Number of gangs and/or finishes might vary)
What does an electrician call this?
This is a 1-gang 2-way 10AX switch, or 2-gang 2-way 10AX switch, or a 1-gang intermediate 10AX switch
Where is this used in the home?
A 1-gang 2-way switch is commonly used for controlling a single light source from one or two places. A 1-gang intermediate is used as the middle switch of three, controlling a single light source (for example in a hallway). A 2-gang switch is used for controlling two light sources from one or two places.
Installation
Katy Paty switches require a bit more patience to wire up, simply because they are modelled on original designs and don't have the modern conveniences of push-contacts and encapsulated backplates.
Just follow the step-by-step pictures below or go to our Katy Paty switch installation page. Don't forget you need a European round box for this product!
Wiring
Step-by-step
(Click gallery to enlarge. Number of gangs and/or finishes might vary)
Please refer to our Installation section for more installation advice, manuals and helpful videos.
Dimensions
Does this cover a standard british back box?
No, a 70mm round back box is required. Check the available options below.
How deep does the back box need to be?
This needs a slightly deeper box, at least 35mm.
The range
The key to the whole Katy Paty range is personalisation. Endless styling possibilities are provided by the huge range of colours, which makes it possible to mix and match moods and rooms. Pale champagne to soothe the senses in a bedroom, a bright candy-pink to accent the white walls of a bathroom, and softest turquoise for the baby’s room.
The detail
The form of this switch is circles within circles, undulating rounds of carefully sculptured porcelain create spiralled surfaces for light to dance on – these switches sparkle. The steel screws on the face of the switch are perfectly placed to create symmetry and framing for the rocker, which adds to the classic feel. The porcelain is glossy (although a matt range is coming soon), homely and tactile, and the switch mechanism delivers a satisfying ‘chink’ as you press the rocker to illuminate your room.
Katy Paty’s switches are hand-made artisan products, so you might find slight imperfections and colour variations. But that just adds to the quirky luxury of having these pieces on your walls.
